Our Flare Units can be supplied with a wide range of
accessories and control systems to suit individual site and
customer requirements.
GAS ANALYZERS
To provide information on the composition of landfill gas being extracted by
the flare. High oxygen and low methane values can be integrated into the
flare control system for additional safety shut down.
FLAREGAS 1
Methane: 0 to 100%
- typical accuracy 0.2% @ 5%
Carbon dioxide: 0 to 100%
- typical accuracy 0.1% @ 10%
Oxygen: 0 to 25%
- typical accuracy 0.5%
FLAREGAS 2
Methane: 0 to 100%
- typical accuracy 0.2% @ 5%
Carbon dioxide: 0 to 100%
- typical accuracy 0.1% @ 10%
Oxygen: 0 to 25%
- typical accuracy 0.5%
Hydrogen sulphide: 0 to 200ppm*
- typical accuracy 2% of H2S
- sample rate 15 minutes with 02 purging
Atmospheric pressure 800 to 1200mbar
Temperature range -10 to 60°C (typical accuracy 0.5°C)
* Special range up to 5000 ppm available on request

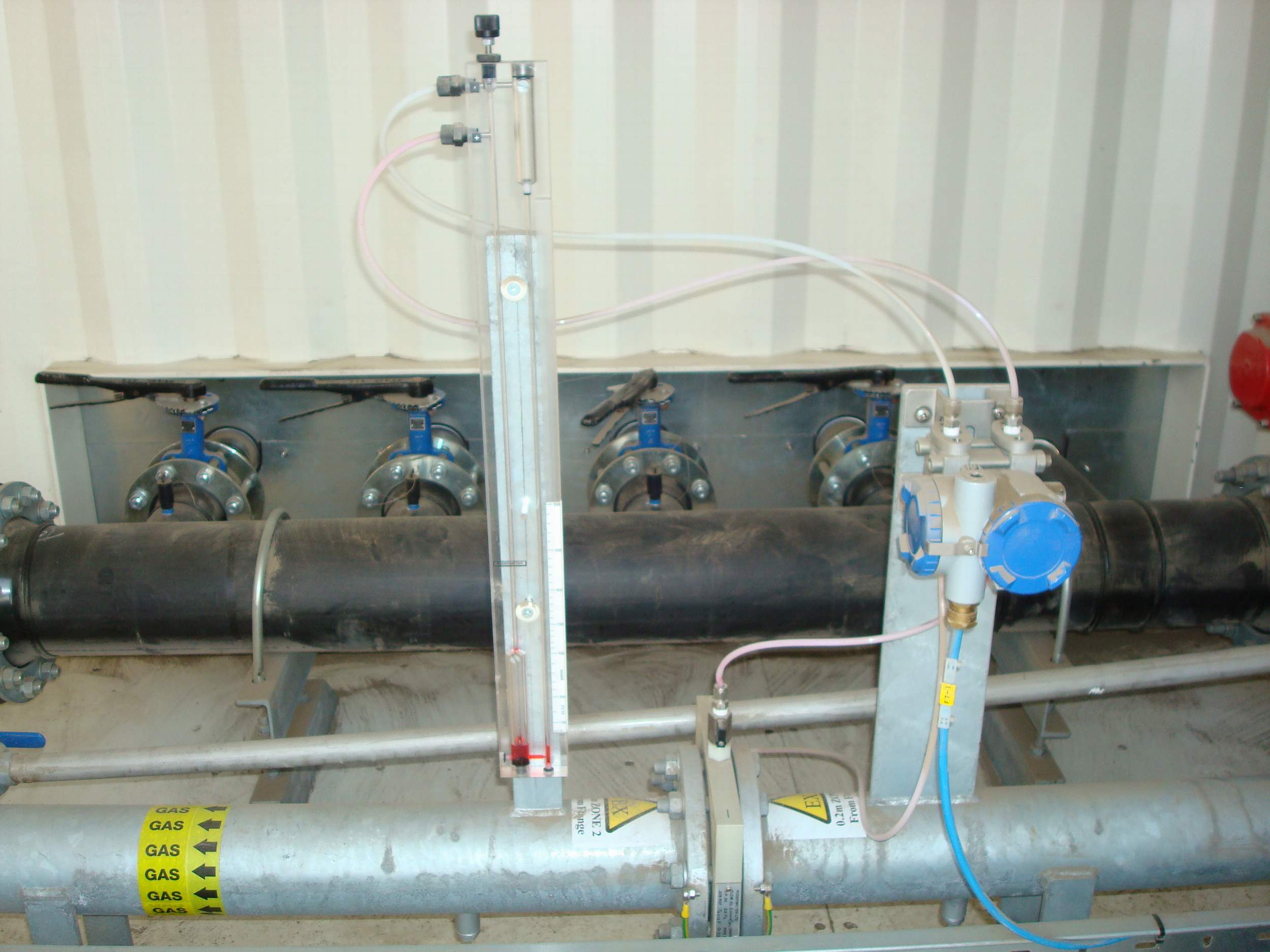

DP FLOW METER TEMPERATURE SUCTION PRESSURE
- A differential pressure transmitter to provide a digital signal of landfillgas flow to control panel
- The Temperature signal to control panel can be provided via the combustion control thermocouple
- Acoustic Enclosure
Telemetry & Data Logging Systems
TEL 1
An all alarms fault dial out system which reads all alarm
signals and alerts any fault by automatically dialing to
specified telephone numbers.
To identify the problem a person will need to go to site
and investigate the flare control system.
The system is suitable for standard phone line or GSM
connection.
TEL 2
As for Tel 1 plus the facility to access the flare
And monitor its operation, start and stop the flare and
diagnose faults remotely.
Digital input & output signals can be read to monitor flare
status including flow, temperature and operating status.
The system is suitable only for standard phone line.
TEL 2A
As for Tel 2 but has the facility to read all analogue
inputs such as analyzers.
LOG O.S.
All data from control systems and analyzers can be
viewed and down loaded either into a disc within the
Log O.S. panel or via a laptop computer.
LOG R.A.
As for the Log O.S. but has the facility to remotely
access and download all data and to access all digital
and analogue signals.
The system is suitable only for standard phone line.
Specifications may change without prior notice
